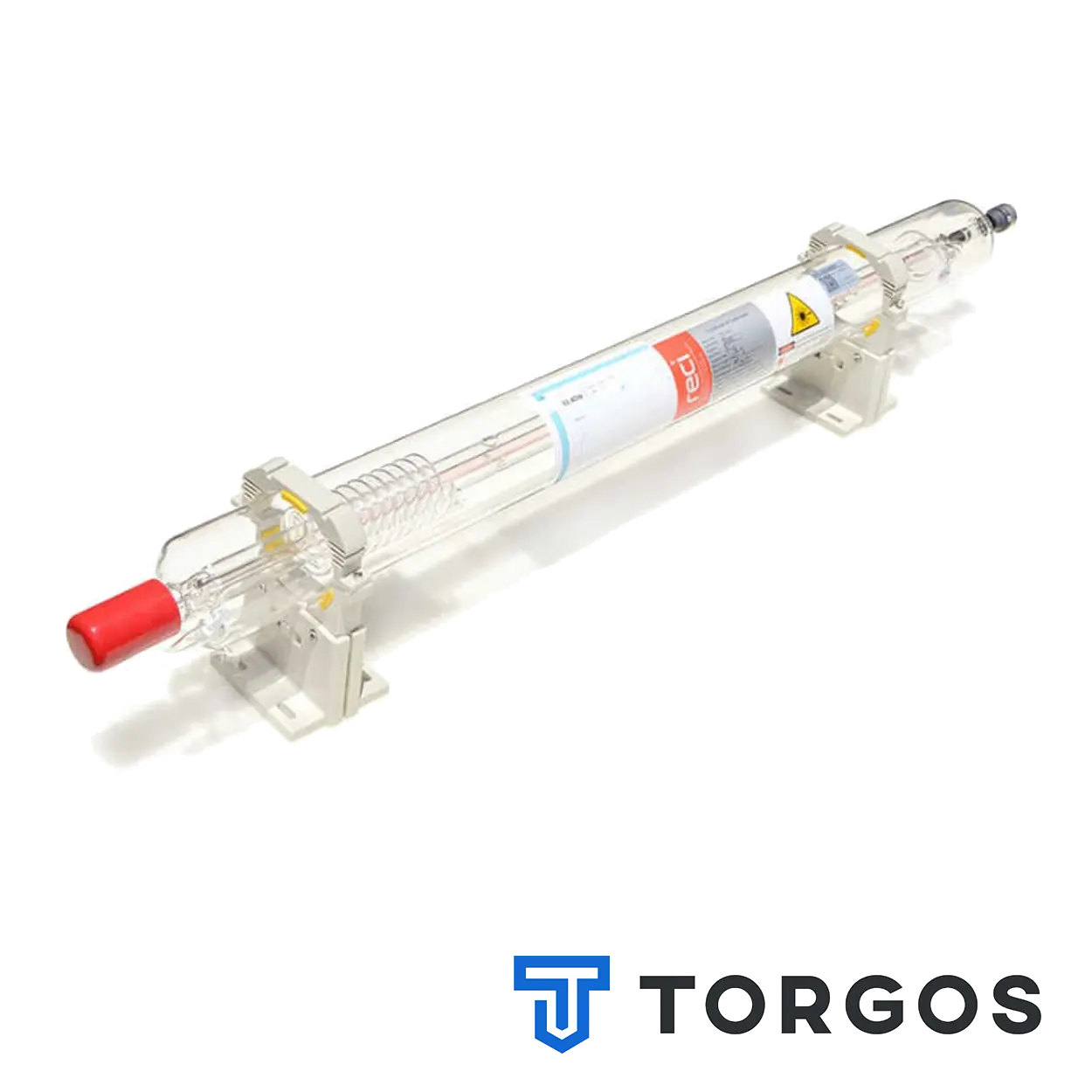

CO2 Laser Tubes EFR F4 & F6 for Cutting and Engraving

A CO2 laser tube is the core component of every CO2 laser cutting and engraving machine. It is a sealed glass tube filled with a gas mixture that, once excited by an electrical discharge, produces the infrared beam used to cut and mark wood, acrylic, paper, leather and other non-metal materials.

Workshops and sign shops that run CO2 laser machines eventually need a replacement CO2 laser tube, either because the original has reached the end of its service life or because a higher output is required for thicker material. Choosing the correct tube matters: length, diameter, wattage and connector type all affect whether it fits a given laser housing.

Specifications

Dimensions, data and technical specifications are provided with reasonable diligence. Minor deviations may occur due to production batch, without affecting quality.

Features

CO2 laser tubes are commonly built in EFR-style glass construction, with the tube’s length and bore diameter determining its rated output power. Longer tubes generally deliver higher wattage, since the excited gas column has more length over which to build energy before the beam exits through the output mirror.

Build quality affects both lifespan and beam stability during operation. A well-made CO2 laser tube holds vacuum and gas fill for longer, keeps the beam centred through the optics, and resists the water-cooling stress that comes with continuous cutting sessions.

• Sealed glass construction filled with a CO2, nitrogen and helium gas mixture
• Length and diameter determine rated output power
• Water-cooled design for stable operation during long cutting runs
• Standard connector ends for straightforward machine fitting
• Typical wattage range from around 40W to 150W depending on tube length

Where it’s used

CO2 laser tubes power desktop and industrial laser cutters used for signage, packaging prototypes, laser-cut acrylic displays and engraved gift items. They are equally common in laser engraving machines used for marking wood panels, leather goods and coated metal for photo engraving.

Fabric cutting, model making and rubber stamp production also rely on a stable tube to keep edges clean at cutting speed. Browse the full CNC and laser parts range for compatible power supplies, mirrors and lenses to complete a tube replacement.

What to check before buying a CO2 laser tube

Confirm tube length, outer diameter and connector position before ordering a CO2 laser tube, since even a few millimetres of difference can prevent it from fitting the existing mounting brackets and water-cooling hoses. Check the rated wattage against the machine’s power supply, as an underpowered or overpowered pairing will not deliver the expected cutting or engraving results.

A common mistake is ordering by wattage alone without checking physical dimensions, since two tubes with the same power rating can have different lengths depending on the manufacturer. It also helps to note the original tube’s glass colour and electrode style, as these details often indicate the specific series required for a correct replacement.

Installation and maintenance

Fitting a new CO2 laser tube requires careful alignment of the beam path, since even a small angle change at the tube can throw off focus at the cutting head. Water flow direction matters too: cooling water should always enter at the beam output end and exit at the high-voltage end to prevent overheating.

Regular maintenance extends tube life significantly. Keep the cooling water clean and below 25°C, check for leaks at the hose connections, and clean the output mirror regularly, since dust build-up on the optics reduces effective cutting power. For background on how CO2 lasers generate their beam, see the Wikipedia entry on CO2 lasers.

FAQ

How long does a CO2 laser tube last? Typical service life ranges from around 1,000 to 6,000 hours of operation, depending on build quality, cooling and how often the machine runs at full power.

Can any tube be fitted to any machine? No. Tube length, diameter, connector type and wattage must match the original specification, or the housing, optics and power supply will not align correctly.

Why does cutting power drop even though the tube still lights up? Gas degradation inside the sealed tube reduces output over time, so a machine can still produce a visible beam while losing enough power for clean cuts.
